IONIZER

Room Ionization

The ionizer type suitable for rooms is optimally designed to fit the spatial structure of manufacturing facilities and is installed on the ceiling.
It effectively removes contamination and static electricity in areas such as production rooms, cleanrooms, and packaging rooms.

Model 5515 & 5522/5582

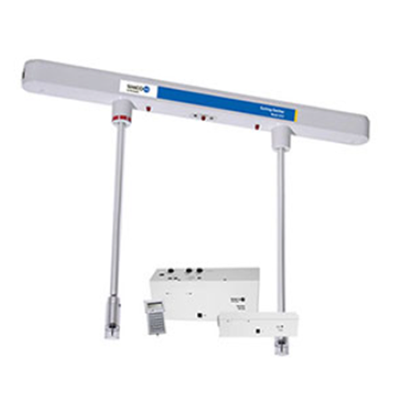

The 5515 Ceiling Emitter and 5522/5582 controllers are utilized in advanced room ionizer systems for spatial static elimination. The 5522 controller can control up to 20 ionizers, while the 5582 controller can control up to 80 ionizers using software.
Portable controllers such as 5571 or 5572 enable individual adjustment of ion output, ion pulse timing, and overall system control through the IonManager Pro software. Precise individual adjustments of all room system ionizers ensure optimal performance in the operating environment.

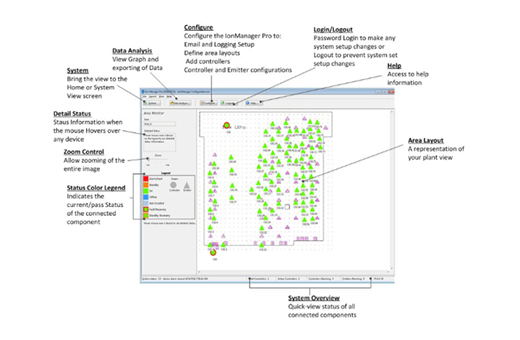

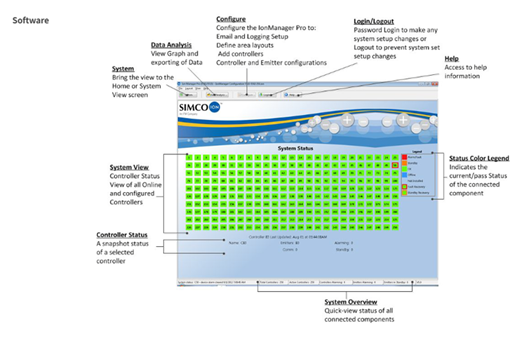

IonManager Pro software monitors the alarm status and operational status of individual ionizers in the room system. Users can configure automatic alarm functions and maintenance notifications based on their preferences, and system changes can be tracked through data logs. Additionally, security settings that only allow access to authorized users are possible.

Features

  • ·Digital technology
  • ·Single crystal silicon or Titanium discharge needles
  • ·Advanced feedback technology
  • ·Individual ion output and pulse timing control remotely
  • ·Alarm and maintenance alert functions

Advantages

  • ·Precise control of parameters with extensive data output
  • ·Ensures ultra-clean performance with minimal maintenance
  • ·Long-term stable ion balance and high ion output
  • ·Remote control of multiple devices using IonManager Pro software
Specification
Input Voltage 24 VAC, 50/60 Hz, 1W (typ)
Ion Emission Pulsed DC, steady-state DC or standby
Emitter Points Emitter Points Single-crystal Silicon or machined Titanium; replaceable
Cleanliness Single-crystal Silicon ISO 14644-1 Class 1; Titanium ISO 14644-1 Class 3 (Fed. Std. 209e Class 1 or better) equivalent
Emitter Rods 2.5, 5, 10, 15, 24, 36, 60 in. (6.4, 12.7, 253.4, 38.1, 61.0, 91.4, 152.4 cm)
Dimension 1.2H x 1.4W x 17.5L in. (3.1H x 3.6W x 44.5L cm)
Weight 16.4 oz (465 grams)
Accessories
  • ·Screws
  • ·Mounting Hardware
  • ·Wire Terminal Connectors
  • ·RJ-11 Modular Phone Plugs
  • ·Wire Ties
  • ·Tie Blocks
  • ·Cabling
  • ·Junction Box
  • ·Colored Ceiling Lenses
  • ·Power Cords
