IONIZER
An air gun enables the removal of contamination and static electricity from items before handling and loading. It is convenient for use in pass rooms and handling areas.

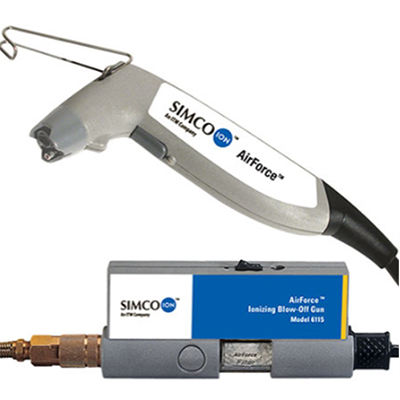

6115 Ionizing Blow-off Gun has been developed for the convenience of workers, featuring a lightweight and flexible air hose for easy use. It eliminates the need for high-voltage cables, enhancing worker safety.
With an ergonomic design, light-touch operation, minimal noise, and LED indicators, it aims to reduce worker fatigue and minimize wrist strain. Easy to install with a compact console, it can be used effortlessly anywhere.
The robust hydraulic system ensures effective cleaning by simultaneously removing static electricity and particles. It is certified as a ISO-14644-1 Class 4 product, offering discharge performance in less than 1 second on average using Steady-State DC technology, and it provides stable static control through the application of IonStat ® technology.
Features
- · Ergonomic design for human factors
- · Lightweight and flexible air hose
- · Replaceable discharge needles and air filters
- · Powerful hydraulic system
- · Stable Steady-State DC method
- · IonStat® Technology
- · Durable construction using high-quality materials
- · ISO-14644-1 Class 4 Certified
Advantages
- · Minimization of worker fatigue and wrist strain
- · Convenient mobility and operation
- · Minimized maintenance time
- · Effective particle removal and cleaning effects
| Discharge | ±1000-100V 1.0 sec @ 6" (15.2 cm), 30 psi |
|---|---|
| Balance | ±30V |
| Cleanliness | Meets ISO 14644-1 Class 4 (Fed Std. 209E Class 10) |
| Ion Emissions | Steady-state DC |
| Dimension |
Gun: 8L x 3W x 1D in. (20.3L x 7.6W x 2.5D cm); Console: 8.5L x 3.0W x 1.6D in. (21.6L x 7.6W x 4.1D cm) |
| Weight |
Gun: 12 oz (341g) with 7 ft (2.1m) air hose; Console: 11.5 oz (326g) |
| Enhanced Features |
Isostat® Technology is a patented technology by Simco-Ion that ensures intrinsic ion balance without the need for complex feedback circuits. IsoStat is based on the principle in physics that 'in an isolated system, static electricity is neither generated nor destroyed,' grounding itself in the law of static electricity exchange. By isolating the discharge needles, IsoStat generates an equal amount of positive and negative ions.
|
| Accessories |
|

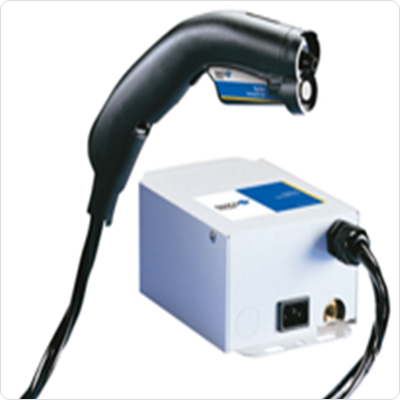

Top Gun™ is a high-performance air gun developed for various electrical, electronic, and medical device manufacturing processes. It provides efficient cleaning with powerful hydraulic action and low airflow while delivering excellent static elimination of ±15V. The built-in air filter enhances the overall cleaning effectiveness. With a lightweight body, outstanding durability, and easy touch operation, it is adaptable to different environments. Flow control, balance adjustment, and all functions, including power and ionization status indicators, are integrated into the body. Both the body and cable are made of anti-static materials, and a hanger is provided for easy storage.
Features
- · Lightweight, ergonomic design
- · Flow control valve
- · Precise ion balance
- · Built-in air filter (replaceable)
- · Durable ESD-Free materials
- · Ionization status indicator
Advantages
- ·Convenient use to prevent worker fatigue and enhance productivity
- ·Adjustable airflow to suit the working environment
- ·Protection of static-sensitive assembly components
- ·Cleaning effectiveness in the target area with the air filter
| Input Voltage | 120 VAC, 60 Hz, 0.2A; 230 VAC, 50 Hz, 0.1A |
|---|---|
| Discharge |
1.3 sec @ 6" (15.2 cm), 30 psi (±1000-100V); 0.5 sec @ 2" (5 cm), 60 psi (±1000-100V) |
| Balance | ±15V |
| Dimension | 6.45H x 5.20W x 3.35D in. (does not incl. flanges) (164H x 132W x 85D mm) |
| Weight | Gun: 6.5 oz (185g); Air Hose: 1.25 ounces/ft (115g/m) |
