IONIZER

Blower types are capable of removing contamination and static electricity in rooms, chambers, passboxes, closets, and similar environments.

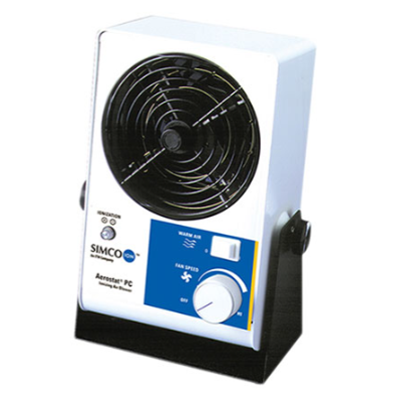

Aerostat® PC

Aerostat PC provides excellent static elimination performance within a specific range and is a blower equipped with AC technology. It features fan speed control, heater function, and a self-discharge needle cleaning device. Quiet and lightweight, it is a suitable product for protecting both workers and workpieces from static electricity.

Features

  • ·Discharge time of 2 seconds or less (at a distance of 30cm)
  • ·Compact, lightweight, low noise
  • ·Built-in self-discharge needle cleaning device
  • ·Built-in discharge needle status indicator
  • ·Built-in heater
  • ·Fan air filter (optional)

Advantages

  • · Fast static elimination time
  • · Suitable for use on workbenches
  • · Easy maintenance
  • · Uniform ionization in the target area
Specification
Input Voltage 120 VAC, 60 Hz: 1.7A (fan high, heater on); 0.1A (fan low, heater off)
230 VAC, 50 Hz: 0.9A (fan high, heater on); 0.05A (fan low, heater off)
Discharge 1.5 sec @ 1'
2.5 sec @ 2'
4 sec @ 3'
6 sec @ 4'
from blower center, fan high (1000-100V), typical
Balance ±10V @ 1'
Coverage Area 1' x 5'
Dimension 8.625"H x 5.5"W x 3.25"D (14 x 22 x 8.4 cm)
Weight 5.7 lbs (2.6 kg)
Emitter Point Cleaner Easily remove accumulated debris with the built-in discharge needle cleaner.
Ionization Indicator Indicator lights for ion generation operation and high-voltage output are also included for user convenience.

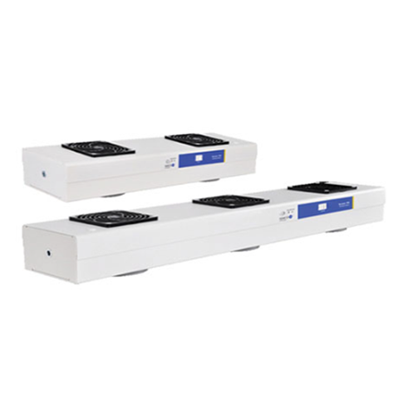

Aerostat® FPD

The Aerostat FPD series is suitable for electronics manufacturing and flat panel assembly processes that demand fast static elimination and stable operation.
Equipped with reliable AC corona technology, it features a high-capacity fan for efficient static elimination and a longer maintenance cycle. The built-in discharge needle cleaner makes maintenance easy, and the product's structure and air control are suitable for product assembly processes.
With self-monitoring capabilities, it allows adjustment for consistent ion output.
The power indicator verifies the power supply status and ion generation, ensuring reliable performance. This model from Simco-Ion, using AC technology, offers outstanding performance.

Features

  • ·High output & high-speed fan
  • ·Perfect ion balance
  • ·Ion generation indicator
  • ·Built-in discharge needle cleaner
  • ·Built-in heater function
  • ·Fan air filter (optional)

Advantages

  • ·Wide coverage in both vertical and horizontal areas
  • ·Fast static elimination performance in horizontal areas
  • ·Low maintenance requirements
  • ·Ensures consistent performance through maintenance
  • ·Ionization status indicator
  • ·Designed to protect internal components from contaminated environments
Specification
Input Voltage 120 VAC, 60 Hz: 0.3A (2-fan); 0.4A (3-fan); 0.5A (4-fan)
230 VAC, 50 Hz: 0.2A (2-fan); 0.2A (3-fan); 0.3A (4-fan)
Discharge <1.0 sec @ 1'
<2.0 sec @ 2'
<3.0 sec @ 3'
<4.5 sec @ 4'
<6.0 sec @ 5'
from blower center, fan high (1000-100V), typical
Balance 0 ±10V
Coverage Area Overhead 2-fan: 2'W x 2'L (0.6m x 0.6m); 3-fan: 2'W x 3'L (0.6m x 0.9m); 4-fan: 2'W x 4'L (0.6m x 1.2m)
Benchtop 2-fan: 2'W x 5'L (0.6m x 1.5m); 3-fan: 3'W x 5'L (0.9m x 1.5m); 4-fan: 4'W x 5'L (1.2m x 1.5m)
Dimension 2-fan: 23.25"L x 4.0"H x 6.25"D (590 x 100 x 160 mm);
3-fan: 35.5"L x 4.0"H x 6.25"D (900 x 100 x 160 mm);
4-fan: 47.75"L x 4.0"H x 6.25"D (1215 x 100 x 160 mm)
Weight 2-fan: 10 lb (4.5 kg)
3-fan: 13 lb (5.9 kg)
4-fan: 16 lb (7.3 kg)
FPD Product range With 2-fan, 3-fan, and 4-fan options available, you can choose a product that fits the effective range for various fields.
2-fan coverage 0.6 x 1.5 m
3-fan coverage 0.9 x 1.5 m
4-fan coverage 1.2 x 1.5 m
