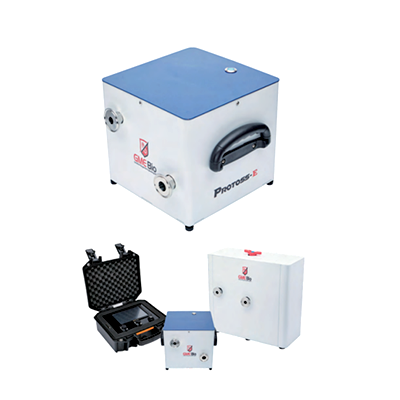

PROTOSS-E
Specification
Model PROTOSS-E
External Material SUS304, AI
Recommended Temperature Operating: 15~30°C / Storage: 15~35°C
Recommended Relative Humidity Operating: 20~85% / Storage: ~85%
Power Required/Consumed AC 220 Volts 50/60Hz, 5 Amps
Operational Application Method Mobile, Semi Mobile, Fixed Pipe
External Dimensions 260 X 260 X 260
Weight 8.5kg
Hydrogen Peroxide Capacity 500ml
Hydrogen Peroxide Concentration 30~35%
Operation System AT MEGA 2560
Data Transmission Ethernet
Monitor Touch Screen Monitor
Supply Gas Discharge Temperature 40℃~70℃
Hydrogen Peroxide Injection 4g/min
Sterilizable Object Size 50m³
Data Storage USB Storage
Wheel Urethane (Locking Feature)

Key Features

  • Icon 1

    Portable Small-Scale Sterilization Equipment
    : A Compact Design with Convenient Mobility

  • Icon 2

    USB Data Port
    : Sterilization Process Storage Capability

  • Icon 3

    Touch Screen Monitor (External HMI)

  • Icon 4

    Cost-Effective Consumables
    : Compatible with All Hydrogen Peroxide Solutions Meeting Reagent Grade Standards

  • Icon 5

    Design Suitable for Easy Cleaning in GMP Facilities

  • Icon 6

    Easy Maintenance and Cost Reduction
    : Replacement of Only the Faulty Parts

  • Icon 7

    Various Port Connection Method for Production Equipment

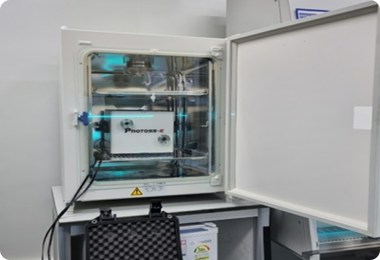

    : Incubators, BSCs, Pass Boxes & Pass Throughs, Isolators, etc

  • Icon 8

    6 Log Reduction Verification (GMP/GLP/BSL 3&4)
    : Sterilization Validation Using Geobacillus stearothermophilus According to USP Guidelines

  • Icon 9

    Green, Red, and Blue LED Indicators for Equipment Operating Status

  • Icon 10

    Calibration Date Notification Feature

  • Icon 11

    Alarm: Audible Alarm Activated Upon Trigger

  • Icon 12

    External Aeration Unit

GLP Lab Cases

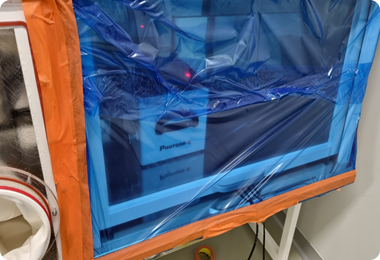

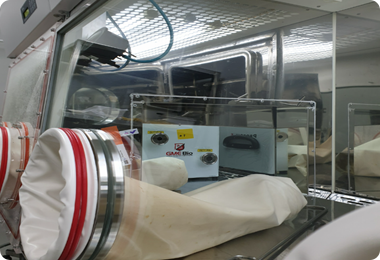

GMP Sterile Production Facility Cases

BSL3 Facility Cases

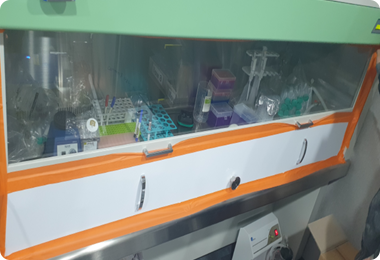

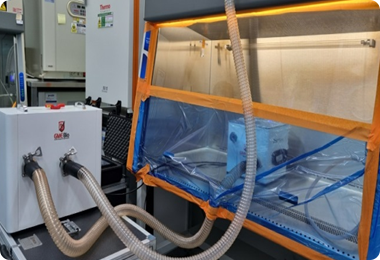

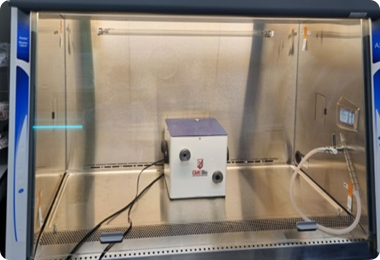

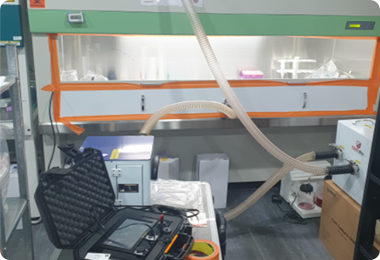

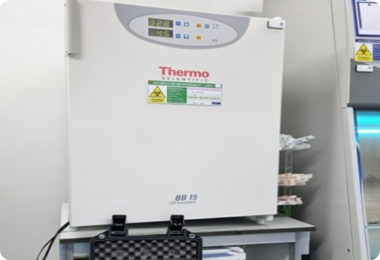

BSC Cases
